5515 Ceiling Emitter

Digital Room Ionization System for Cleanrooms and Controlled Environments

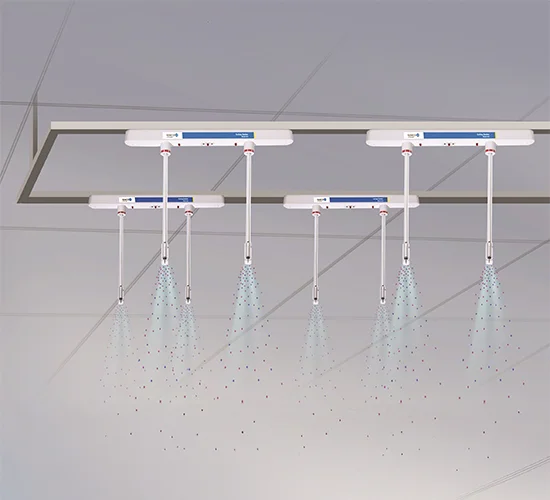

The Simco-Ion Model 5515 Ceiling Emitter is a precision-controlled ionization system designed for cleanroom ceiling grid integration. When paired with the 5522 or 5582 digital controllers and IonManager Pro software, it delivers highly efficient, balanced ionization for static control in critical environments. Each emitter’s parameters can be configured individually via handheld remotes or centrally through software. Combined with advanced feedback technology and ultra-clean emitter materials, the system ensures stable ion output and long-term reliability.

Digital Room Ionization system 5515 V10

Key Features

Fully Digital Ionization: Precision control of ion output, pulse timing, and balance
Emitter Material Options: Replaceable single-crystal silicon (Class 1) or titanium (Class 3) emitter points
Advanced Feedback Technology: Maintains ion balance and performance over extended use
Flexible System Control: Handheld Terminal, IR Remote, or IonManager Pro software integration
Scalable Architecture: Supports up to 80 emitters per system (Model 5582)
System Monitoring: Visual and software-based alarm notifications with data logging
Minimal Ozone & EMI: Ozone <0.005 ppm, EMI below background level
Extended Warranty: 10-year limited warranty on emitters and controllers

Applications

Cleanroom ceiling grid integration
Static control in semiconductor manufacturing
Controlled environments requiring uniform ion distribution
Facilities with advanced alarm and monitoring infrastructure
Process tools and EFEM environments with airflow constraints

Technical Highlights

Input Voltage (Emitter): 24 VAC, 50/60 Hz, 1W
Output Voltage: 0–20 kVDC per polarity, adjustable per emitter
Ion Emission Modes: Pulsed DC, Steady-state DC, standby
Timing Control: 0–10 sec in 0.1 sec increments (microcontroller-based)
Emitter Rod Lengths: 2.5 to 66 inches (custom lengths available)
Control Interface: RJ-11 jack | Remote via 5571, 5572, or IonManager Pro
Cleanroom Classification: ISO Class 1 (silicon), Class 3 (titanium)
Operating Conditions: 15–35 °C, 20–60% RH (non-condensing)
Dimensions & Weight (Emitter): 1.2″ × 1.4″ × 17.5″ | 1.03 lb (0.465 kg)

Ideal For

Semiconductor and electronics manufacturing
Cleanrooms with demanding ionization performance requirements
Facilities upgrading from analog to digital static control systems
Environments requiring software-based monitoring and data logging
Multi-room installations with scalable control needs
