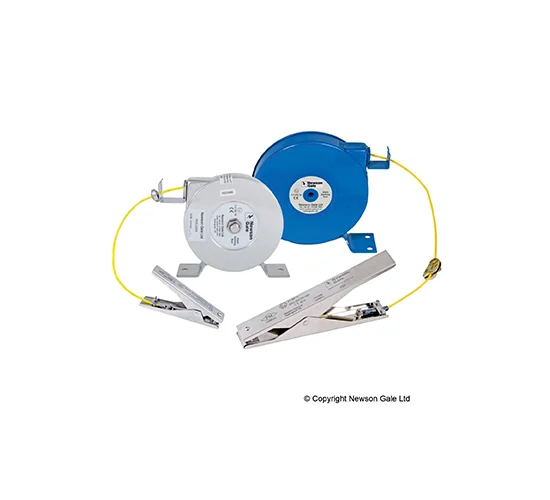

Cen-Stat™ Static Grounding Clamps, Cables and Reels

Reliable Static Control for Hazardous Environments.

The Cen-Stat™ range by Newson Gale offers a comprehensive solution for passive static grounding, including certified clamps, high-visibility static-dissipative cables, and durable retractable reels. Designed for use in hazardous industrial environments, these components ensure reliable, low-resistance (<10 Ω) connections to verified earth grounding points. With ATEX, IECEx, FM, and UKCA approvals, Cen-Stat™ devices meet international safety standards for the elimination of static ignition risks.

Cen-Stat Static Grounding Clamps, Cables and Reels

Key Features

Heavy-duty clamps with tungsten carbide teeth for reliable connection through coatings and rust
Certified for use in Zone 0 / Div. 1 hazardous areas
Cen-Stat™ cables with static-dissipative Hytrel® coating and UV resistance
Retractable cable reels in powder-coated or stainless steel housings
Multi-stranded galvanized or stainless steel conductors for strength and flexibility
Standard cable lengths: 3 m, 5 m, 10 m (spiral) and up to 30 m (reel)
Compliant with IEC TS 60079-32-1 requirements for temporary grounding

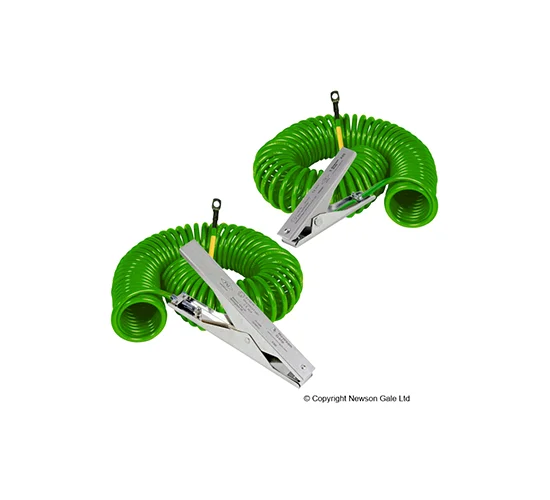

Clamp Models

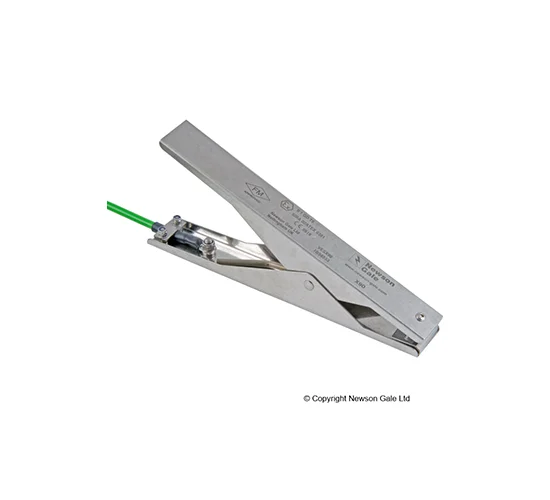

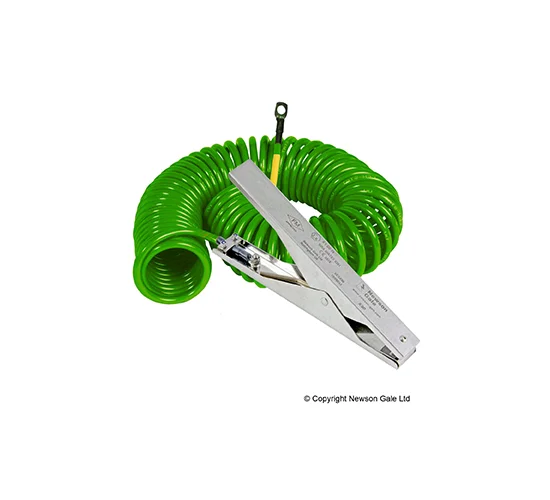

**VESX90 – Large Heavy-Duty Clamp**
Stainless steel construction (Grade 304)
Tungsten carbide teeth with stainless steel mounting block
jaw opening: 30 mm
Spring: 3.5 turn torsion, SS Grade 302
Cable sizes: 3 m, 5 m, 10 m Cen-Stat spiral cable (4 mm² conductor, 6.5 mm coated diameter)
Operating temperature: -40°C to +60°C
Dimensions: 240 × 105 × 33 mm
Certified: ATEX, FM, IECEx, UKCA Ex

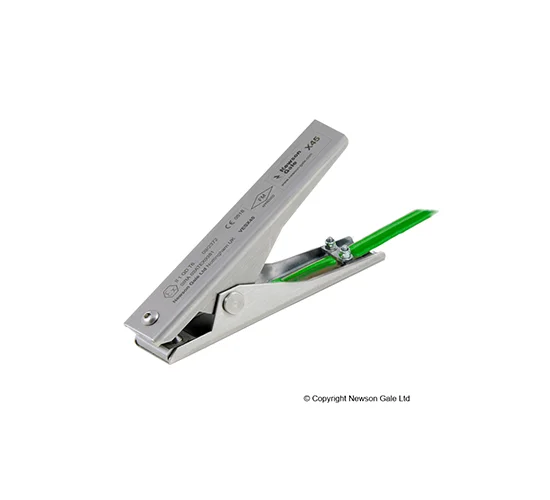

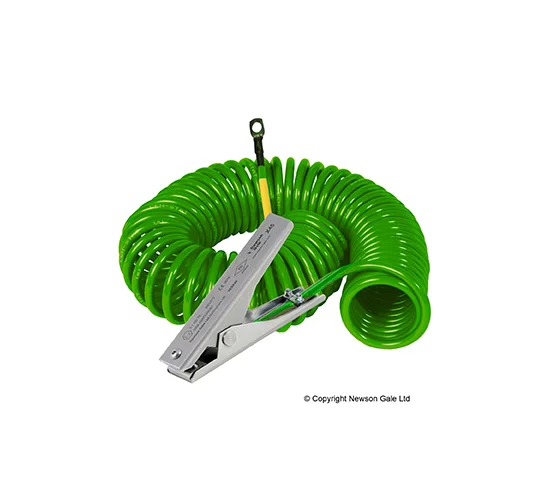

**VESX45 – Medium Heavy-Duty Clamp**
Stainless steel construction (Grade 304)
Tungsten carbide teeth with stainless steel mounting block
jaw opening: 15 mm
Spring: 4 turn torsion, SS Grade 302
Cable sizes: 3 m, 5 m, 10 m Cen-Stat spiral cable (4 mm² conductor, 6.5 mm coated diameter)
Operating temperature: -40°C to +60°C
Dimensions: 120 × 65 × 25 mm
Certified: ATEX, FM, IECEx, UKCA Ex

Retractable Cable Reels

Available in powder-coated or stainless steel housings
Spring-loaded, latchable or non-latchable designs
Cable lengths: 6.1 m, 9.1 m, 15.2 m, or 30 m
Cable diameter: 2.3 mm conductor, up to 3.9 mm with Hytrel coating
High-visibility yellow Hytrel jacket
Certified: ATEX, FM (R20 & R30), IECEx, UKCA Ex

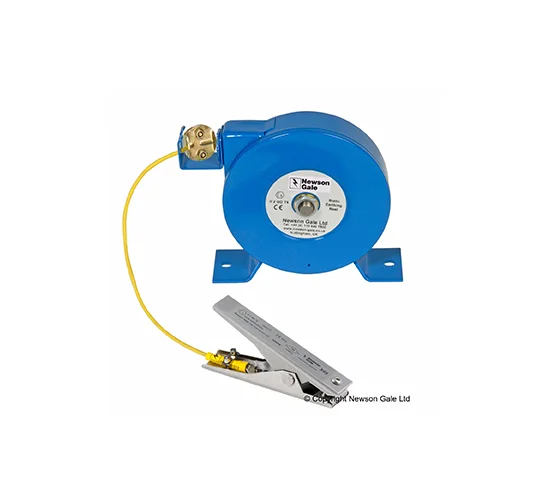

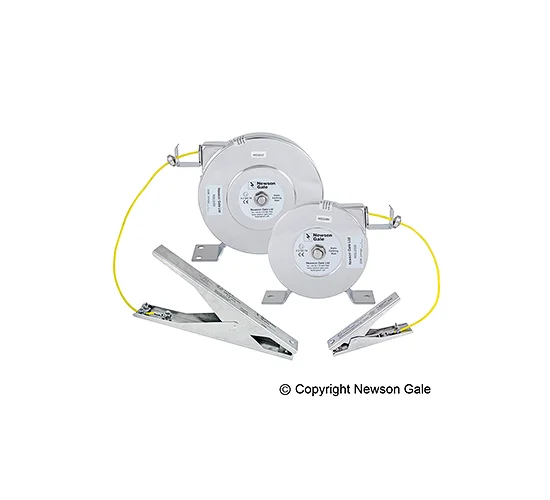

Reel models: NG Reel 20 / 30 / 50 (Galvanized), Stainless Steel R-Series (SS)

Ideal For

Grounding and bonding of metal drums, IBCs, and containers
Hazardous locations requiring passive static protection
Portable and permanent bonding applications
Environments with coatings, rust, or process residue
