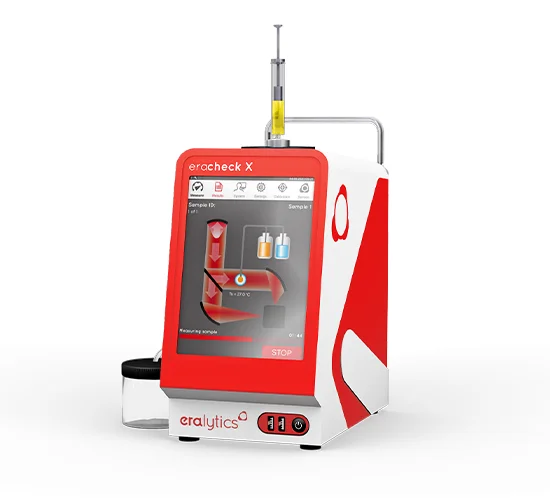

ERACHECK X

ERACHECK X is a high-end, portable oil-in-water analyzer designed for rapid, precise, and environmentally friendly analysis. Utilizing a dual-beam non-dispersive infrared (NDIR) spectrometer and CFC-free cyclohexane solvent, ERACHECK X complies fully with ASTM D8193 and offers excellent correlation with EPA 1664, ISO 9377-2, and OSPAR standards.

Key Features

Xtra Accurate: Measures oil-in-water with sub-ppm precision and excellent reproducibility (r = 0.25 mg/L), across a broad range (0–3000 mg/L).
Xtra Fast & Easy: Fully automated analysis with minimal glassware; results available in under 5 minutes.
Xtra Rugged: Constructed with a corrosion-resistant aluminum housing and no moving parts, making it ideal for offshore platforms and harsh environments.
Xtra Compact: Smallest footprint in its class, highly portable for field use and small laboratories.

Applications

TOG (Total Oil and Grease)
TPH (Total Petroleum Hydrocarbons)
FOG (Fats, Oils, and Grease in wastewater)

Technical highlights

Solvent: Cyclohexane or Tetrachloroethylene
Sample Volume: 200 mL water + 15 mL solvent
Measurement Time: 5 minutes including extraction
Measurement Range: 0–3000 mg/L oil-in-water
Repeatability (SD): 0–50 mg/L: 0.25 mg/L (900:50 mL H₂O:solvent); 0.34 mg/L (200:15 mL H₂O:solvent)
Interfaces: Built-in PC with Ethernet, 4 USB ports, RS232; Wi-Fi via USB dongle
Display: 8.4” multilingual color touchscreen
Power Supply: 85–264 V AC or 12 V DC (field use)
Dimensions: 18.0 × 28.6 × 29.3 cm
Weight: 6.7 kg

Ideal for

Oil & Gas Industry: Routine compliance testing on offshore platforms, during drilling operations, and in production facilities to monitor and control oil discharge levels.
Environmental Agencies & Laboratories: Regulatory testing and reporting of oil contamination in natural water bodies or industrial discharge in accordance with international standards.
Industrial Wastewater Monitoring: Quick on-site checks of wastewater treatment plant effluents for FOG and hydrocarbon contamination to ensure discharge compliance.
Field Service Providers & Consultants: Portable use in remote locations for immediate oil-in-water diagnostics and environmental assessments.
Marine & Shipping Applications: Monitoring of bilge water and effluents to meet MARPOL and port state control requirements.
Refineries & Petrochemical Plants: Quality control of water streams and quick identification of oil contamination sources in complex industrial processes.
