ERADENS XS

The World’s Smallest Portable 5-Digit Density Meter

ERADENS XS is the world’s smallest and lightest high-precision 5-digit portable density meter, delivering laboratory-grade accuracy wherever you need it. With its patented x-oscillating metal U-tube and robust metal housing, ERADENS XS enables ASTM D4052 precision in the field. Fully wireless, ultra-compact, and battery-powered, it is the ultimate solution for mobile density measurements.

ERADENS XS Brochure EN

Key Features

True Portability: Weighing only 2.1 kg with battery, ideal for one-hand operation and field use.
Battery Operation: Up to 8 hours continuous testing at 15 °C – no external power needed.
Precision Anywhere: 5-digit resolution and full viscosity correction ensure reliable results even under changing conditions.
Wireless Control: Operate via the “eradens xs” app on any smartphone or tablet.

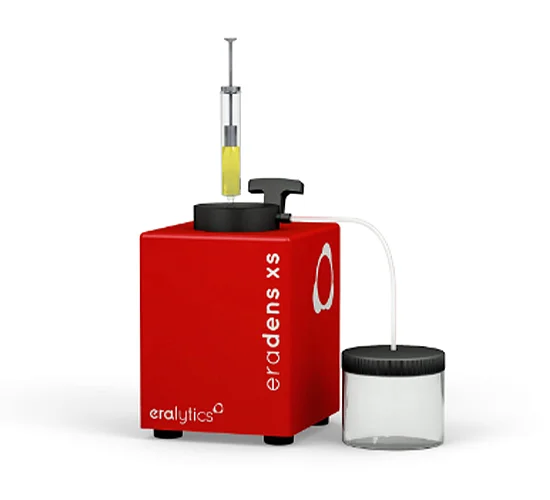

Ergonomic Design: Easy top-side sample filling, no cables required, and comfortable carrying handle.

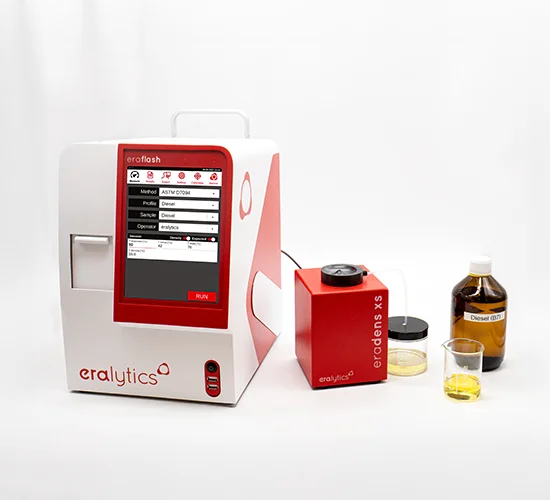

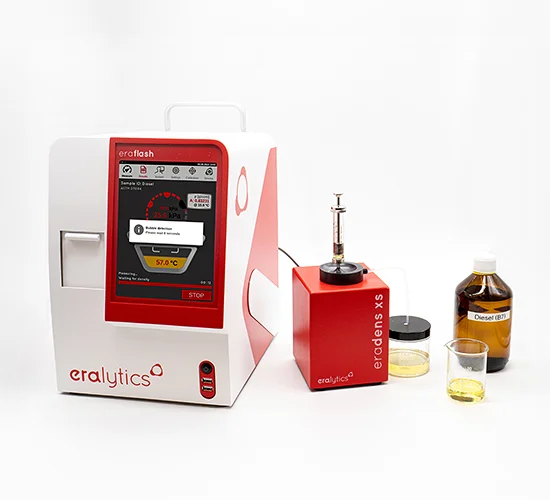

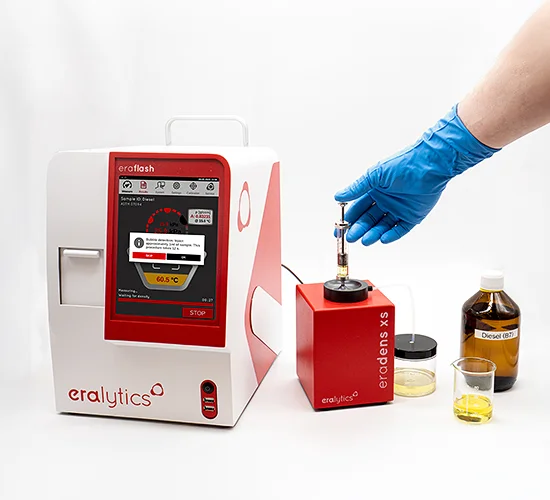

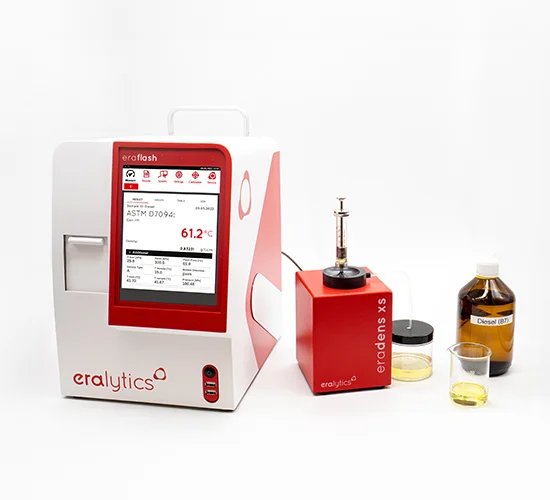

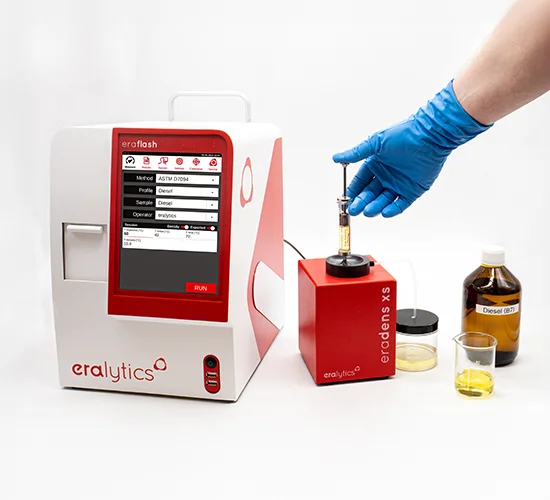

Analyzer Integration: Can be linked to eralytics analyzers for seamless multi-parameter workflows.

Applications

Mobile density measurement in oil & gas, refining, chemical, beverage, and environmental industries
Fast field validation of fuel and crude oil properties
Quality control and regulatory testing on-site or in mobile labs

Technical Highlights

Standards: ASTM D4052, D5002, D5931; ISO 12185
Density Range: 0–3 g/cm³
Resolution: 0.00001 g/cm³
Accuracy: 0.00005 g/cm³
Repeatability (SD): 0.00001 g/cm³
Temperature Range: 10–60 °C (accuracy ±0.02 °C)
Sample Volume: Minimum 2 mL
Measurement Time: 15 seconds (after temperature stabilization)
Bubble Detection: Integrated automatic detection
Viscosity Correction: Full-range correction (patented)
Interfaces: Micro-USB (for eralytics analyzers), Wireless communication with mobile devices via app
Power Supply: 110–240 V AC, 50–60 Hz
Battery Runtime: Up to 8 h at 15 °C
Dimensions & Weight: Without battery: 11 × 13 × 16 cm, 1.45 kg; With battery: 11 × 13 × 21 cm, 2.1 kg
Operating Conditions: 5–45 °C, max 90 % RH (non-condensing)

Ideal For

Mobile Fuel Testing: Density and API gravity measurements in the field with lab precision
Crude Oil & Refinery Sampling: On-site property analysis with compact handling
Beverage & Alcohol Control: Density-to-alcohol conversion on the go
Environmental & Regulatory Agencies: Portable tool for quick spot checks and compliance
Analyzer Integration: Ideal supplement for eralytics benchtop instruments
