ERAFLASH

High-Performance Flash Point Tester with Maximum Safety

ERAFLASH is a cutting-edge flash point tester based on Continuously Closed Cup Flash Point (CCCFP) methods ASTM D6450 and D7094. Designed for maximum safety, precision, and speed, ERAFLASH operates without open flames or glowing wires and requires as little as 1–2 mL of sample. With its patented Peltier Boost Technology™ (PBT), ERAFLASH provides the widest temperature range on the market, from –40 °C to 420 °C, within a single device.

Key Features

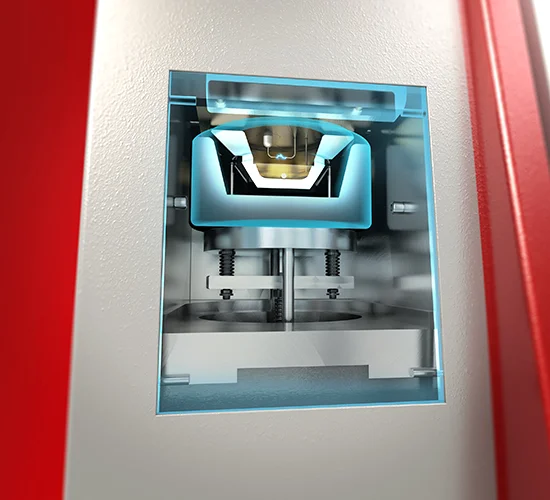

Maximum Safety: No open flame or glowing wire – ignition takes place in a sealed chamber.
High Speed: Patented Peltier Boost Technology™ enables ultra-fast heating and cooling.
Low Sample Volume: Requires only 1–2 mL, ideal for expensive or hazardous samples.
Comprehensive Testing: Compliant with ASTM D6450, D7094 and compatible with ASTM D93, IP620 and others.

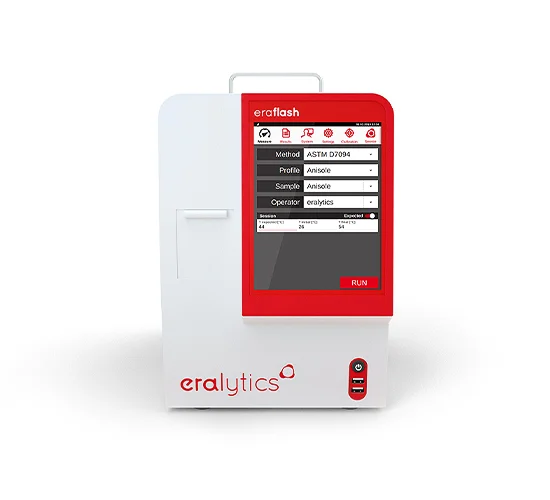

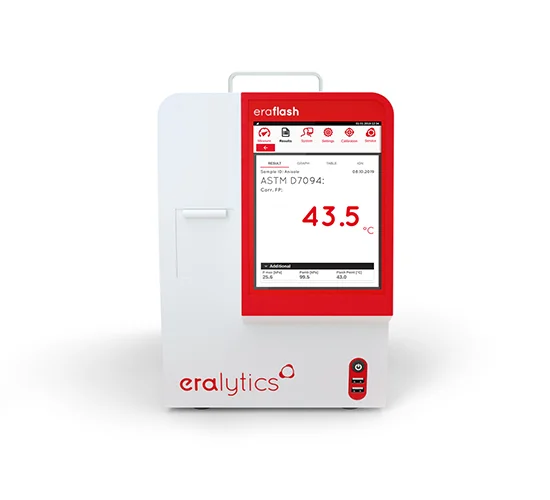

Fully Automated: Touchscreen interface, LIMS connectivity, autosampler option, remote service via ERASOFT.
Versatile Models: Standard (EF10), Low Temp (EF20), Autosampler (EFS10).

Applications

Specification testing of fuels: diesel, kerosene, jet fuel, biodiesel blends
Analysis of used and fresh lubricants
Bitumen and petroleum product testing
Flammable material classification (DOT, RCRA, NAVY, NATO)
Flash point determination for fragrances, cosmetics, paints, and hazardous waste

Technical Highlights

Test Methods: ASTM D6450, D7094, IP620; pre-installed correlation to ASTM D93, D3828, D56, ISO 3679/3680, etc.
Fuel Specs Support: ASTM D396, D975, D2880, D3699, D7467
Temperature Range: ERAFLASH: –25 °C to 420 °C; ERAFLASH LT: –40 °C to 120 °C
Temperature Stability: ±0.1 °C
Sample Volume: 1–2 mL
Throughput: Up to 12 samples per hour
Interfaces: Ethernet, USB, RS232, optional Wi-Fi; LIMS-compatible
PC Software: ERASOFT RCS for remote control and multi-device integration
Power Supply: 85–264 V AC (47–63 Hz); optional 12 V DC (field use)
Dimensions & Weight: 24 × 35 × 34 cm | 9.7 kg

Ideal For

Fuel Refining & Distribution: Precise flash point testing for diesel, jet fuel, and blends
Lubricant Industry: Safety classification and used oil condition monitoring
Chemical & Cosmetic Industry: Low-volume testing for volatile substances
Regulatory Compliance: DOT, RCRA, NAVY, NATO validation
QA/QC Labs & Mobile Units: Fast, safe, and compact flash point testing solution
