ERASPEC

Portable FTIR Fuel Analyzer – Fast, Precise, Modular

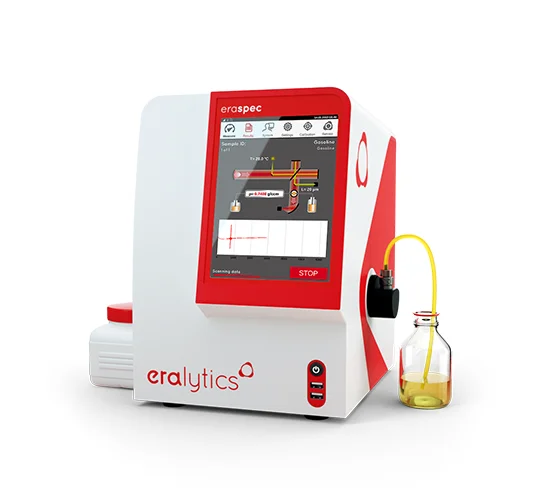

ERASPEC is a high-precision FTIR spectrometer for rapid multi-fuel analysis including gasoline, diesel, jet fuel, ethanol, methanol, and synthetic fuels. Within seconds, ERASPEC delivers comprehensive fuel parameter results including octane numbers, cetane index, density, distillation points, and component concentrations. Its rugged, portable design and modular measurement cells make it ideal for both lab and field applications.

Key Features

Ultra-Fast Analysis: Full-spectrum measurement and evaluation in ~60 seconds
Multi-Fuel Compatibility: Gasoline, diesel, jet fuel, biofuels, alcohols, and synfuels
Modular Design: Triple or optional fourfold cell system optimized for different fuel types
Integrated Density Measurement: ASTM D7777 or high-precision ASTM D4052 module

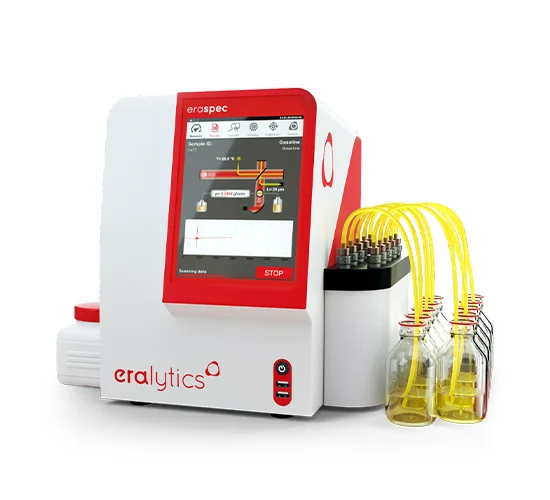

Autosampler Option: 10-position autosampler for higher throughput
Large Built-in Fuel Libraries: Easily expandable with user data

Applications

Fuel quality testing at terminals, refineries, blending stations
Mobile labs for regulatory and roadside fuel inspections
Research and development in engine and fuel formulation
Detection of fuel adulteration and specification compliance
Routine QC in petrochemical laboratories

Technical Highlights

Standards: ASTM D5845, D6277, D4052, D7777, D7806, EN 238, EN 14078, ISO 15212, IP559
Spectrometer Type: Patented mid-FTIR with laser- and temperature-controlled interferometer
Measurement Time: 60 s incl. automatic filling/rinsing; 30 s warm-up
Cell Design: Triple position (20 µm, 100 µm, reference); optional fourfold cell
Sample Volume: 10 mL, drawn by built-in pump
Density Module: DENS7777: ASTM D7777, r = 0.0005 g/cm³; DENS4052: ASTM D4052, r = 0.0001 g/cm³
Calibration: Factory pre-calibrated with hundreds of real fuel samples
Spectral Libraries: Expandable, user-editable, with instant availability

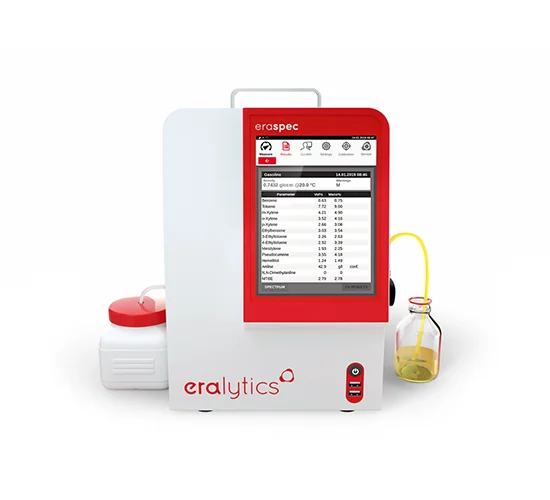

Software & Display: Touchscreen + ERASOFT RCS remote control software
Interfaces: Ethernet, USB, RS232, Wi-Fi via USB dongle; LIMS-compatible
Data Storage: 50,000+ spectra and results
Power Supply: 85–264 V AC, optional 12 V DC for mobile use
Dimensions & Weight: 29 × 35 × 34 cm | 10.5 kg

Ideal For

Fuel Laboratories: Quick and repeatable results for blending and certification
Mobile Testing Teams: Fast on-site analysis with lab-grade precision
Government & Inspection Bodies: Fuel adulteration detection at gas stations
Oil & Gas Industry: Real-time fuel QC at pipelines and storage terminals
R&D in Engine Development: Fast feedback on fuel composition and behavior
