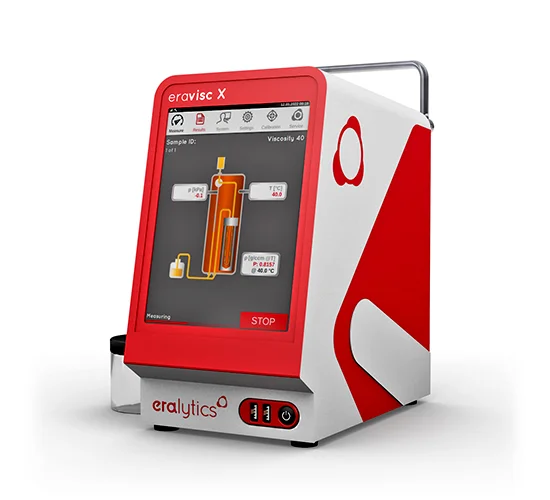

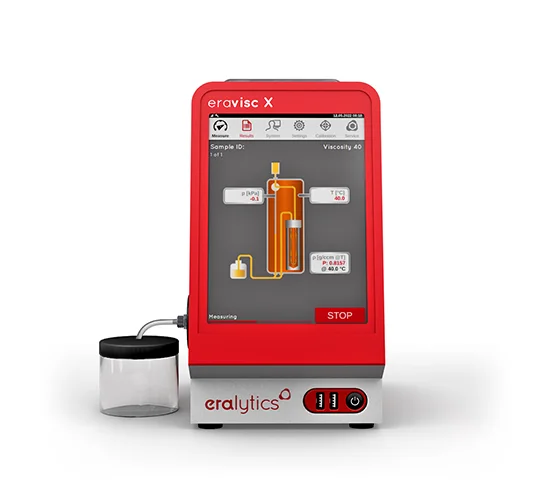

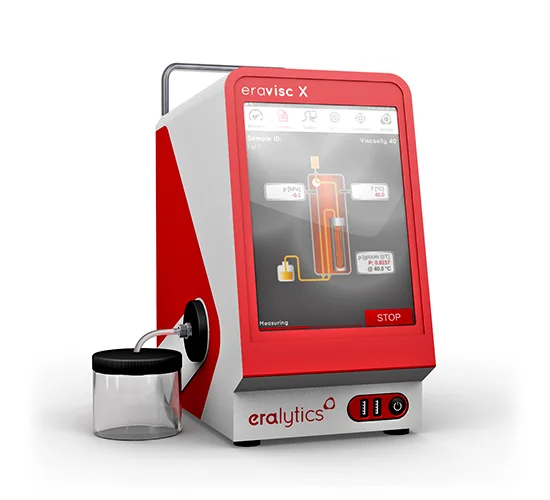

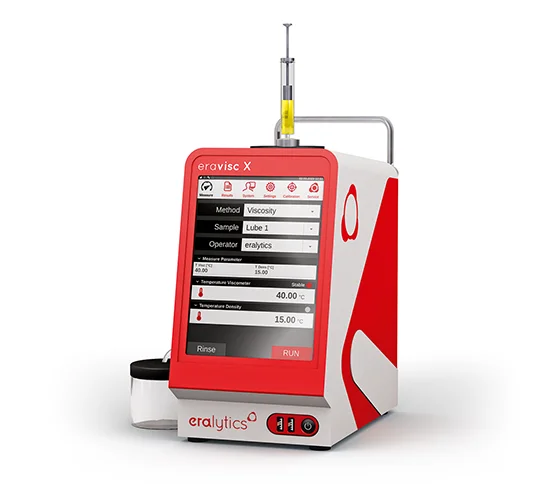

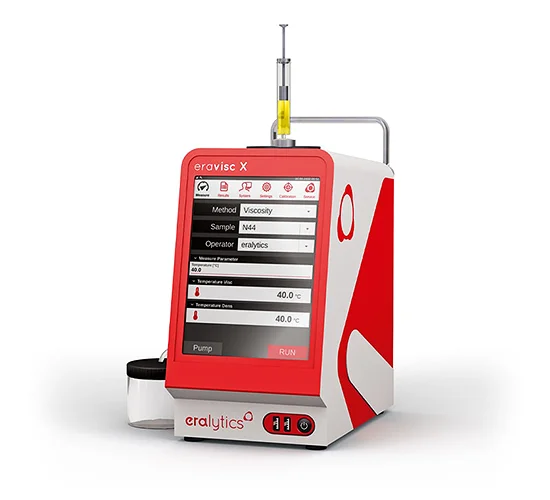

ERAVISC X

Portable High-Precision Viscometer and Densitometer

ERAVISC X is the world’s most compact and rugged high-precision analyzer for simultaneous kinematic viscosity and density measurements. Built for lab and field use, it meets ASTM D445, D7042, D4052, and ISO 12185 standards. Its revolutionary viscosity cell and patented x-oscillating metal U-tube allow accurate, independent measurement of viscosity and density — even at different temperatures. With robust construction and full automation, ERAVISC X is ideal for rapid condition monitoring and quality control.

ERAVISC X brochure

Key Features

2-in-1 Measurement: Viscosity and density measured simultaneously at independent temperatures
Ultra Compact & Rugged: Aluminum housing, smallest footprint, built for harsh conditions
Fast & Automated: One-button measurement with 1-minute test time and 3 mL sample volume
Bubble Detection: Patented FillingProof™ system for automated bubble detection and quantification
User-Friendly Interface: 8.4” multilingual touchscreen with top-side filling and intuitive software
Direct Connectivity: LIMS integration, remote service, CSV/PDF export, optional barcode scanner

Applications

Condition monitoring of lubricants, hydraulic oils, engine and turbine oils
Specification testing of fresh and used oils
Fuel and crude oil analysis in lab or field
Mobile test labs and maintenance facilities
Process control in petrochemical and manufacturing industries

Technical Highlights

Test Methods:
– Viscosity: ASTM D445, D7042, ISO 3104, ISO 23581
– Density: ASTM D4052, D5002, ISO 12185
Special Modes:
– Viscosity Index (VI) calculation at 40 °C & 100 °C
– Simultaneous viscosity & density measurement at independent temperatures
Measuring Range:
– Viscosity: 1–1000 mm²/s
– Density: 0–3 g/cm³
Temperature Range:
– Viscosity: 15–100 °C
– Density: 0–100 °C
Accuracy:
– Viscosity: ±0.8 %
– Density: ±0.00005 g/cm³
Repeatability (SD):
– Viscosity: ±0.25 %
– Density: ±0.000005 g/cm³
Resolution:
– Viscosity: 0.01 mm²/s
– Density: 0.00001 g/cm³
Temperature Accuracy: ±0.02 °C
Measurement Time: 1 minute
Sample Volume: 3 mL
Integrated Features: Drying pump, ambient pressure sensor, remote service over Ethernet
Interfaces: Ethernet, 4× USB, RS232, optional Wi-Fi (USB), LIMS-ready
Data Storage: Over 100,000 detailed test reports
Power Supply: 85–264 V AC, 47–63 Hz, max. 150 W
Dimensions & Weight: 15.7 × 28.5 × 28.9 cm | 8 kg

Ideal For

Lubricant Analysis Labs: Quick and reliable VI, viscosity, and density results
Oil & Gas Operations: Field-ready design for upstream and downstream testing
Industrial Maintenance Teams: Spot-checks for wear, contamination, and degradation
Mobile Labs: True portability without compromising on precision
QA/QC in Production: High-speed testing directly on-site or at the bench
