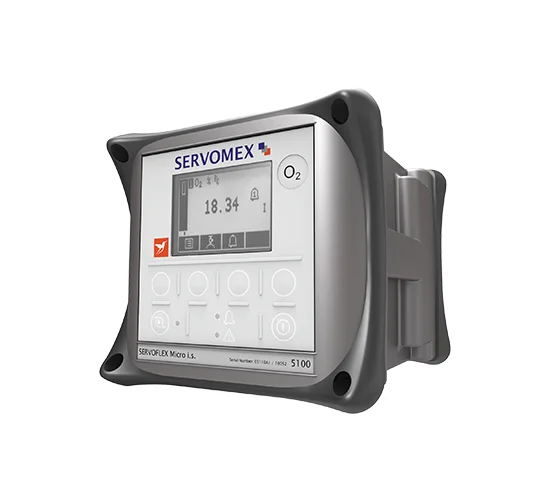

Servoflex Micro i.s. 5100

Intrinsically Safe Portable Analyzer

The SERVOFLEX Micro i.s. (5100 i.s.) analyzer offers a unique solution for portable hazardous area analysis. It is certified to ATEX Cat 1, FM, and IECEx approvals for use in Zone 0 hazardous areas. The analyzer features a rubber-overmoulded casing, which is located with stainless steel fibers to prevent potentially hazardous static electricity build-ups, and also provides additional physical protection. Long-life rechargeable lithium-ion batteries are installed as standard, and an integral electronic notepad enables data to be stored for subsequent analysis.

Servoflex Micro i.s. 5100 Operator Manual

Key Features

Safety Certifications: Intrinsically safe and Zone 0 hazardous area approved, requiring no purge, allowing portable analysis in all hazardous zones. It is safe for calibration without the need for a hot work permit.
Sensor Technology: Uses non-consumable, reliable, and highly accurate paramagnetic technology for stable, non-depleting measurement of % level O2, CO, and CO2.
Robust Construction: Features rugged, robust IP65 construction.
Battery Life: Advanced Li-ion rechargeable batteries are standard, offering up to 18 hours of run time.
Data Storage: Stores up to 200 measurements for subsequent download.
Flexible Options: Available in pumped and non-pumped versions.
Ergonomics: Ergonomic design with a carry strap.

Applications

Catalytic regeneration.
Decoke cycle.
Combustion optimization.
Process monitoring.
Inerting applications.
Controlled atmosphere monitoring.
Hazardous area analysis.

Technical Highlights

Gases Measured: Oxygen (O2), Carbon Dioxide (CO2), and Carbon Monoxide (CO).
Technology: Paramagnetic for Oxygen; Infrared for Carbon Dioxide and Carbon Monoxide.
Full Scale Range (FSR):
- O2: 0-100% (Industrial and High accuracy variants).
- CO2: 0-10%, 0-25%, 50%, 100%.
- CO: 0-5%.
Accuracy (intrinsic error):
- O2: ±0.1%O2 (High accuracy), ±0.05%O2 (Industrial).
- CO2: ±2% FSR.
- CO: ±2% FSR.
Response Time (T90): <15 seconds for O2 (High accuracy), <10 seconds for O2 (Industrial), <15 seconds for CO2 and CO.
Operating Temperature: -10°C to +50°C (+14°F to +122°F).
Dimensions (without protective case): W 160mm (6.3″) x D 140mm (5.5″) x H 185mm (7.3″).
Weight: 1.8 kg to 2.3 kg (4.0 to 5.1 lbs).
Ingress Protection: IP65.
Sample Gas: Clean, dry, non-flammable, and non-toxic gases only.
Power Supply: Internal Li-ion battery pack recharged via a 100-240V/43-70Hz charger (supplied).

Ideal For

Hazardous Area Analysis: Specifically designed and certified for use in Zone 0/Division 1 hazardous locations.
Field Spot Checking: Unique and practical option for spot checking in hazardous areas without the need for a hot work permit.
Process Control & Monitoring: Suitable for continuous monitoring and control in various industrial processes.
