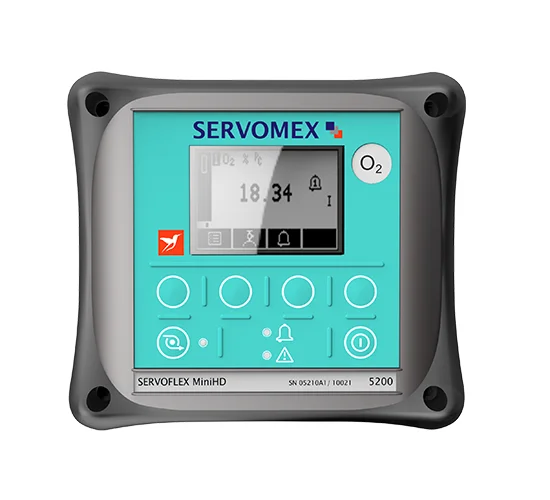

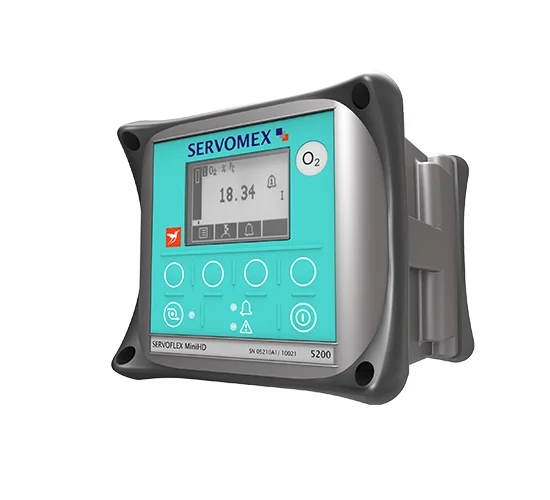

SERVOMEX 5200 HD Mini

Rugged Portable Gas Analyser

The SERVOMEX 5200 HD is a rugged, heavy-duty portable gas analyzer specifically designed for accurately analyzing gas mixtures in field and light industrial applications. This compact, reliable, and easy-to-use instrument utilizes non-depleting, component-specific measurement techniques (magnetodynamic paramagnetic and infrared) to ensure long life and minimal running costs, avoiding the issues associated with electrochemical or less robust analysis methods. The 5200 HD can replace well-established Servomex 244, 404, 571, 572, and 575 analyzers, and can also replace the Model 570 in non-explosive atmospheres.

Serviflex MiniHD Operator Manual

Key Features

Accurate & Reliable: Provides fast, accurate, reliable, and component-specific measurements, ensuring observed values are credible and not due to background interference
Always Ready: Non-depleting paramagnetic or infrared measurement technology ensures the unit is always ready for use
Robust & Portable: Features a robust, IP65-rated case with protective overmolding. Its outer construction is anti-static, stainless steel-loaded polypropylene with carbon-filled rubber overmolding
User-Friendly: Includes customer pre-tested software and long-life Li-ion rechargeable batteries for maximum ease of use
Battery Life: Typical battery life is 10 hours at 20°C (68°F). Note that the unit is not designed to run from mains power
Data Storage: Up to 200 measurement points can be stored in the analyzer memory for later viewing
Versions: Two versions are available: internally pumped or “AFCD” version for pressurized samples
Certified: CE marked and complies with EEC EMC and WEEE Directives UL approved. The AFCD version is ORSAT validated to meet USFDA performance requirements for verifying medical oxygen USP and nitrogen NF

Applications

Analyzing common gas mixtures in field and light industrial applications
Physiology studies
Universities
Combustion optimization
Transformer entry
Medical gas verification
Research

Technical Highlights

Measured Gases: Oxygen (O2) or Carbon Dioxide (CO2). The MiniHD model can also measure Carbon Monoxide (CO)
Measurement Methods: Paramagnetic for Oxygen, and Infrared for Carbon Dioxide and Carbon Monoxide
Accuracy (intrinsic error): ±0.1%O2 (high accuracy), ±0.05%O2 (industrial), ±2% FSR for CO2
Response Time (T90): <15 seconds for O2 (high accuracy), <10 seconds for O2 (industrial), <15 seconds for CO2 and CO
Operating Temperature: -10°C to +50°C (+14°F to 122°F)
Dimensions (without protective case): W 160mm (6.3″) x D 140mm (5.5″) x H 185mm (7.3″)
Dimensions (with protective canvas case): W 175mm (6.9″) x D 160mm (6.3″) x H 195mm (7.7″)
Weight: 1.8 Kg to 2.3kg (4.0 to 5.1lbs)
Ingress Protection: IP65 (Protected against dust and low-pressure water jets from all directions)
Sample Gas: Clean, dry, non-flammable, and non-toxic gases only. (Note: Toxic gas samples containing >5% CO2 or >200ppm CO can be analyzed with appropriate precautions)
Sampling: Internal pump samples at 0.7 liters (0.03 cubic feet) per minute (nominal). User configurable timer
Inlet Pressure: -7kPa (-1psig) to +3.5kPa (+0.5psig) (with optional internal pump). For unpumped units with AFCD, 7kPa (1psig) to 70kPa (10psig)
Power Supply: Internal Li-ion battery pack recharged with a 100-240V/43-70Hz charger (supplied)

Ideal For

Field Operations: Rugged and portable for demanding on-site analysis
Light Industrial Environments: Suitable for various industrial applications requiring gas mixture analysis
Laboratories: Can be used for accurate gas analysis when a robust, portable solution is needed
Replacements: An ideal replacement for older Servomex models (244, 404, 571, 572, 575, and 570 in non-explosive atmospheres)
Medical Gas Verification: AFCD version is validated for medical oxygen and nitrogen testing
