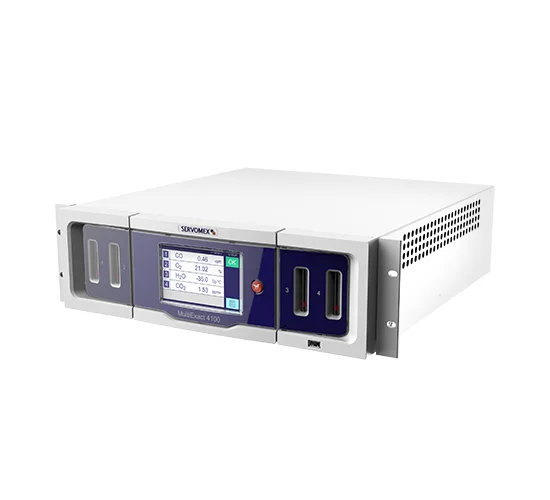

SERVOPRO MultiExact 4100

Sophisticated, Next-Generation Multi-Gas Analyzer

The SERVOPRO MultiExact 4100 is a high-performance multi-gas analyzer engineered to provide a highly adaptable analysis solution for industrial and medical gas manufacturers. This sophisticated, next-generation analyzer can measure up to four simultaneous gas streams, including various concentrations of Oxygen (O2), Carbon Dioxide (CO2), Carbon Monoxide (CO), Nitrous Oxide (N2O), Methane (CH4), Argon in O2, Nitrogen in Argon, Oxygen or Air, and Helium in Argon, O2 or Nitrogen. It integrates support for the AquaXact 1688 Aluminum Oxide moisture transmitter and can be fitted with a wide range of sensing technologies, making it a comprehensive solution for pharmacopeia applications.

Key Features

Highly Flexible: Measures up to four gas streams simultaneously and can be configured with various sensing technologies, including Paramagnetic, Zirconia, Gas Filter Correlation Infrared (GFx), Single-Beam Infrared (SBSW), Aluminum Oxide, and Thermal Conductivity¹ (TCD).
Comprehensive Solution: Addresses the needs of industrial and medical gas manufacturers, offering analysis for a wide range of gases and concentrations.
Integrated Moisture Support: Includes integrated support for the AquaXact 1688 Aluminum Oxide moisture transmitter.
Advanced Communications: Features digital communications for remote access, including RS232/RS485 Modbus and PROFIBUS (with Ethernet Modbus TCP/IP to follow).
Extensive Outputs: Provides up to 32 alarms and 32 relays with follow or freeze options, plus four analog outputs and four analog inputs.
High Performance: Built for accurate and reliable measurements with Servomex’s proven sensing technologies.

Applications

Industrial gas manufacturing.
Medical gas manufacturing.
Pharmacopeia applications.
Process control.
Quality control of various gas mixtures.

Technical Highlights

Measured Gases: O2 (trace, control, purity), CO2, CO (% and trace), N2O, CH4 (trace), Ar in O2, N2 in Ar, O2 or Air, He in Ar, O2 or N2.
Sensing Technologies: Paramagnetic, Zirconia, Gas Filter Correlation Infrared (GFx), Single-Beam Infrared (SBSW), Aluminum Oxide, and Thermal Conductivity² (TCD).
Simultaneous Streams: Up to four gas streams.
Moisture Integration: Supports AquaXact 1688 Aluminum Oxide moisture transmitter.
Communication Protocols: RS232/RS485 Modbus, PROFIBUS, Ethernet (Modbus TCP/IP to follow).
Outputs: Up to 32 alarms, 32 relays, 4 analog outputs, 4 analog inputs.
Power Requirements: 100-240V AC, 50-60 Hz (as per similar Servomex devices).
Certifications: Complies with EN 61010-1 and EN 61326-1:2013, Class A.

Ideal For

Gas Manufacturers: Perfect for producers of industrial and medical gases requiring precise control and quality assurance.
Pharmaceutical Industry: Suitable for pharmacopeia applications demanding high accuracy and compliance.
Complex Gas Analysis: Environments needing to measure multiple gas components simultaneously across various concentrations.
Integrated Systems: Facilities looking for an analyzer that can easily integrate into existing control systems and supports external moisture measurement.
