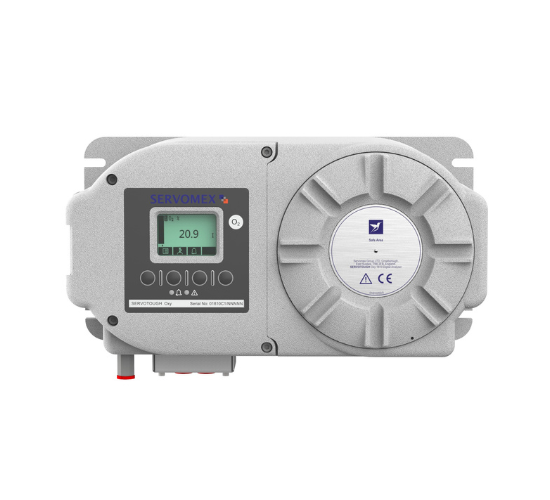

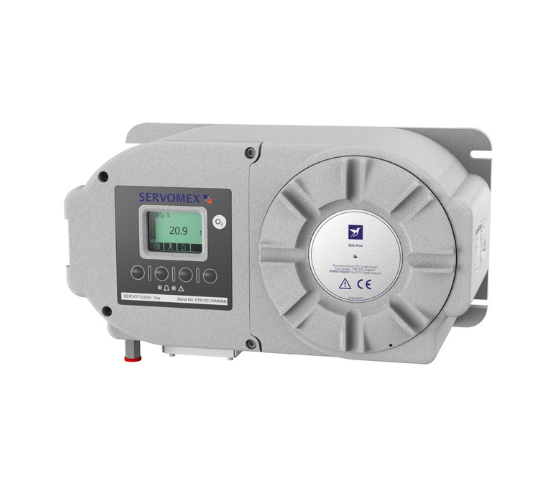

SERVOTOUGH Oxy 1810

Safe Area Oxygen Analyzer

The SERVOTOUGH Oxy 1810 is a digital paramagnetic oxygen analyzer engineered specifically for safe area installations, combining leading edge measurement stability with the convenience of a compact wall mounted design. Its non depleting Paramagnetic O₂ sensing, clear digital display and built in communications deliver fast, reliable insight into oxygen levels while reducing maintenance effort and simplifying integration with modern control systems. With flexible options including high flow bypass, flow alarm, pressure compensation and auto validation the Oxy 1810 maximizes uptime and measurement availability and keeps lifetime ownership costs low.

SERVOTOUGH-Oxy-1810-Product-Brochure

Key Features

Digital Safe Area Design: Purpose built for non hazardous safe area installations, combining a compact wall mounted IP66 enclosure with rugged electronics for reliable operation indoors or outdoors.
Non Depleting Paramagnetic Sensing: Uses Servomex patented paramagnetic O₂ technology for stable, non depleting percentage measurements, delivering long sensor life and consistent accuracy across ranges from 0–1 % to 0–100 % O₂ with a lower detection limit below ±50 ppm.
Clear Digital Insights: Provides at a glance readings from the front mounted digital display while built in digital communications give real time data and diagnostics to your control system, helping you detect and respond to process changes faster.
Space Saving Wall Mount: Frees up valuable panel and rack space through a wall mounted design that can be located where it is most convenient around processes, plants and sites, without the need for large shelters or cabinets.
Flexible Sample Handling: Optional high flow rate bypass cell, flow alarm and pressure compensation, plus special transducer versions for solvent or hydrogen bearing samples, allow the analyzer to be tailored to a wide variety of applications
Low Maintenance Operation: Long calibration intervals, long cell life and robust construction minimise routine intervention, helping you boost uptime and reduce ongoing maintenance effort and cost.
Auto Validation and Calibration: Optional auto validation and auto calibration functions reduce hands on time, support preventative maintenance strategies and help maintain high confidence in every measurement.
Easy System Integration: Standard 4–20 mA outputs and Modbus digital communications make it straightforward to connect the Oxy 1810 to modern control and monitoring systems for remote diagnostics, real time monitoring and automation.
Proven Compliance: CE marked to meet EU EMC, Low Voltage and RoHS directives, supporting use in regulated industrial environments and simplifying compliance documentation.

Applications

Process control in safe areas.
Ambient air and room monitoring.
Clean rooms and glove boxes.
Food storage and packing.
Inerting and blanketing.
Wastewater treatment and environmental monitoring.
Pressure swing adsorption (PSA) oxygen and nitrogen generation.
Air separation units.
Industrial and medical oxygen purity monitoring.
Chemical, petrochemical, pharmaceutical, power generation and industrial gas industries.

Technical Highlights

Measured Gas: Oxygen (O2).
Sensing Technology: Non-depleting paramagnetic percentage measurement.
Area Classification: Safe area digital analyzer, wall-mounted IP66 enclosure for indoor and outdoor use.
Measurement Range: 0–1 % to 0–100 % O2, lower detection limit < ±50 ppm O2.
Sample Handling Options: High flow rate bypass cell, special transducer versions for solvent or hydrogen-bearing samples.
Flow and Pressure Options: Optional flow alarm and pressure compensation for stable readings under changing conditions.
Outputs: Isolated 4–20 mA analog output with configurable alarm and status relays.
Digital Communications: Modbus RTU (RS485) and Modbus TCP (Ethernet) for integration and remote diagnostics.
Dimensions and Weight: 448 mm (W) × 235 mm (H) × 227 mm (D); approx. 26 kg.

Ideal For

Safe Area Installations: Applications that require reliable oxygen monitoring in non hazardous, IP66 rated safe areas indoors or outdoors.
Everyday Process Control: Processes where stable, accurate oxygen measurement helps optimise quality, efficiency and safety without complex sample systems.
Ambient and Room Monitoring: Laboratories, production areas, clean rooms and glove boxes that need continuous O₂ monitoring for product and personnel protection.
Inerting and Blanketing: Storage tanks, process lines and packaging systems where controlled oxygen levels are critical to prevent oxidation or ignition.
Food and Environmental Applications: Food storage and packing, wastewater treatment and other environmental processes needing dependable percentage oxygen analysis.
PSA and Industrial Gas Plants: Pressure swing adsorption units, air separation systems and industrial or medical oxygen plants that benefit from low maintenance, digital oxygen monitoring.
