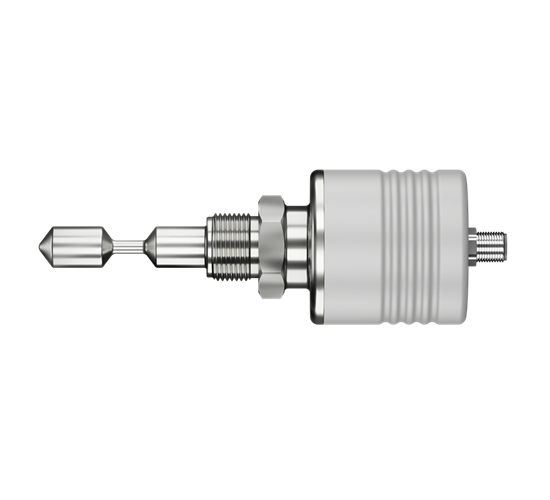

XL3 Mini Process Viscometer

Compact inline viscosity measurement for small bore pipes and tanks

The Hydramotion XL3 is a mini in line viscometer that delivers real time viscosity and temperature directly in the process. With an integrated smart head, 4 to 20 mA and RS485 Modbus outputs, the XL3 connects straight to existing DCS or PLC systems without a separate processor. Its compact, lightweight design drops into small bore pipes or tanks, giving a stable viscosity signal with no moving parts, no on site calibration and minimal installation effort.

Key Features

Compact inline design for small bore pipes, skids and tanks
Real time viscosity measurement with fast 1 second update rate
Viscosity range 0 to 5 000 cP (low to medium viscosity fluids)
Integrated temperature sensor for simultaneous monitoring
4 to 20 mA output configurable for viscosity, referenced viscosity or temperature
RS485 Modbus interface for digital data access
Smart head electronics – no separate processor required
All welded stainless steel sensor with no moving parts and no routine maintenance
IP67 protection for industrial environments
Long cable runs up to 1.2 km via standard M12 connector

Applications

Inline viscosity control in compact piping systems and small reactors
Monitoring of mixing, blending and formulation processes
Continuous viscosity tracking in coatings, inks, adhesives, oils and resins
Replacement of manual or offline viscosity checks
OEM machinery with limited space requiring a simple 4 to 20 mA signal
Safe area installations where Ex rating is not required

Technical Highlights

Viscosity range: 0 to 5 000 cP
Update rate: 1 second
Accuracy: 1 % of reading or ±0.1 cP
Repeatability: 0.3 % of reading or ±0.05 cP
1× 4 to 20 mA output (viscosity, referenced viscosity or temperature)
RS485 Modbus digital interface
Power supply: 12 to 24 V DC, approx. 60 mA
Integrated thermometer
Temperature range: -30 °C to +100 °C
Pressure rating according to process fitting
Standard process connection: 3/4″ BSPP
Maximum cable length: 1.2 km
Electrical connector: 5 pin M12 male (A coded)
All welded, crevice free stainless steel construction
Sensor material: SS316
Head material: acetal homopolymer
Surface finish: 0.8 µm Ra
Weight: approx. 750 g
Ingress protection: IP67
V Link utility for configuration
ViscoLink 4 for data capture and logging

Ideal For

Process engineers needing inline viscosity measurement in tight installations
Plants requiring a simple, stable 4 to 20 mA viscosity signal
OEMs and skid builders integrating compact viscometers into equipment
Users wanting real time viscosity and temperature feedback to improve product quality
Applications demanding Hydramotion performance in a small, easy to install package
