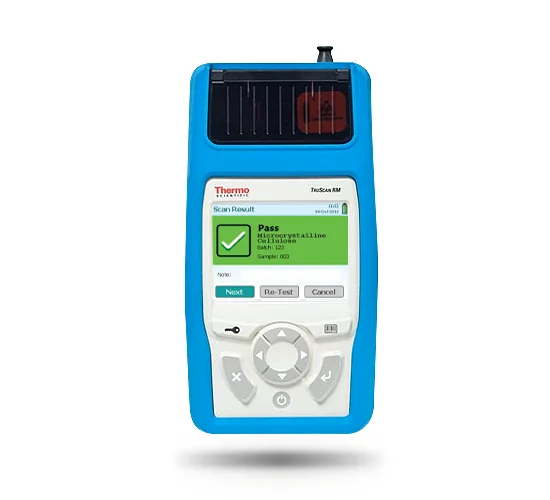

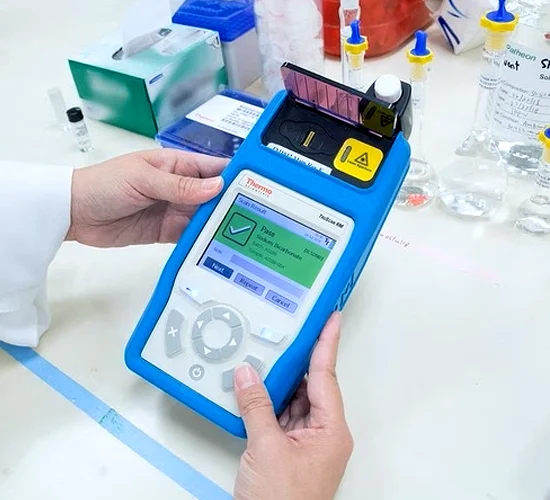

TruScan™ RM Handheld Raman Analyzer

Portable Device for Rapid, Non-Destructive Material Identification in Regulated Environments

The Thermo Scientific™ TruScan™ RM Handheld Raman Analyzer enables rapid and accurate identification of raw materials, excipients, and finished products directly at the point of need. Built for pharmaceutical and biotech environments, it minimizes sampling delays, improves throughput, and maintains regulatory compliance. Its non-destructive point-and-shoot design allows analysis through sealed packaging, reducing contamination risk. The device’s advanced chemometric engine adapts in real time to environmental changes and operator behavior, delivering confident PASS/FAIL results within seconds.

TS RM SpecSheet

Key Features

Fast Results: Delivers clear PASS/FAIL output in seconds
Advanced Chemometrics: Embedded multivariate residual analysis with dual preprocessing modes
Rugged and Lightweight: <2 lbs (0.9 kg), drop-resistant design
Non-Destructive Sampling: Analyze through sealed containers with no sample prep
Regulatory Compliant: Supports cGMP and 21 CFR Part 11 with audit trails and biometric login
Smart Functionality: Assisted acquisition and device qualification warnings
Enhanced Reporting: Generates PDF batch reports; time sync with PC supported
Training and Support: Includes IQ/OQ/PQ templates, SOPs, and global technical support

Applications

Incoming raw material verification
Real-time material ID during dispensing
Counterfeit detection
Release testing and process verification
Regulated pharmaceutical production environments

Technical Highlights

Spectral Range: 250 to 2875 cm⁻¹ | Resolution: 8–10.5 cm⁻¹ (FWHM)
Laser: 785 nm ±0.5 nm, 250 mW output, <0.1 cm⁻¹ stability
Spot Size: 0.2 to 2.5 mm | Working Distance: 18 mm
Battery: Rechargeable lithium-ion, >3 hrs runtime
Power Supply: 100–240 V AC wall adapter | USB-C input
Weight: 0.9 kg | Dimensions: 20.8 × 10.7 × 4.3 cm
Operating Temperature: –20°C to +40°C
Connectivity: Ethernet | Barcode: Linear and 2D symbologies
Security: Biometric login support
Accessories: Vial, tablet, and cuvette holders
Compliance: FDA 1040, 21 CFR Part 11, CE, Ph. Eur. 8.7

Ideal For

Pharmaceutical and biotech QA/QC teams
Raw material inspection at receiving
On-the-spot ID during production
Field verification in regulated industries
Counterfeit detection in global supply chains
